WEIGHT OF COPPER WIRE & COPPER STRIPS

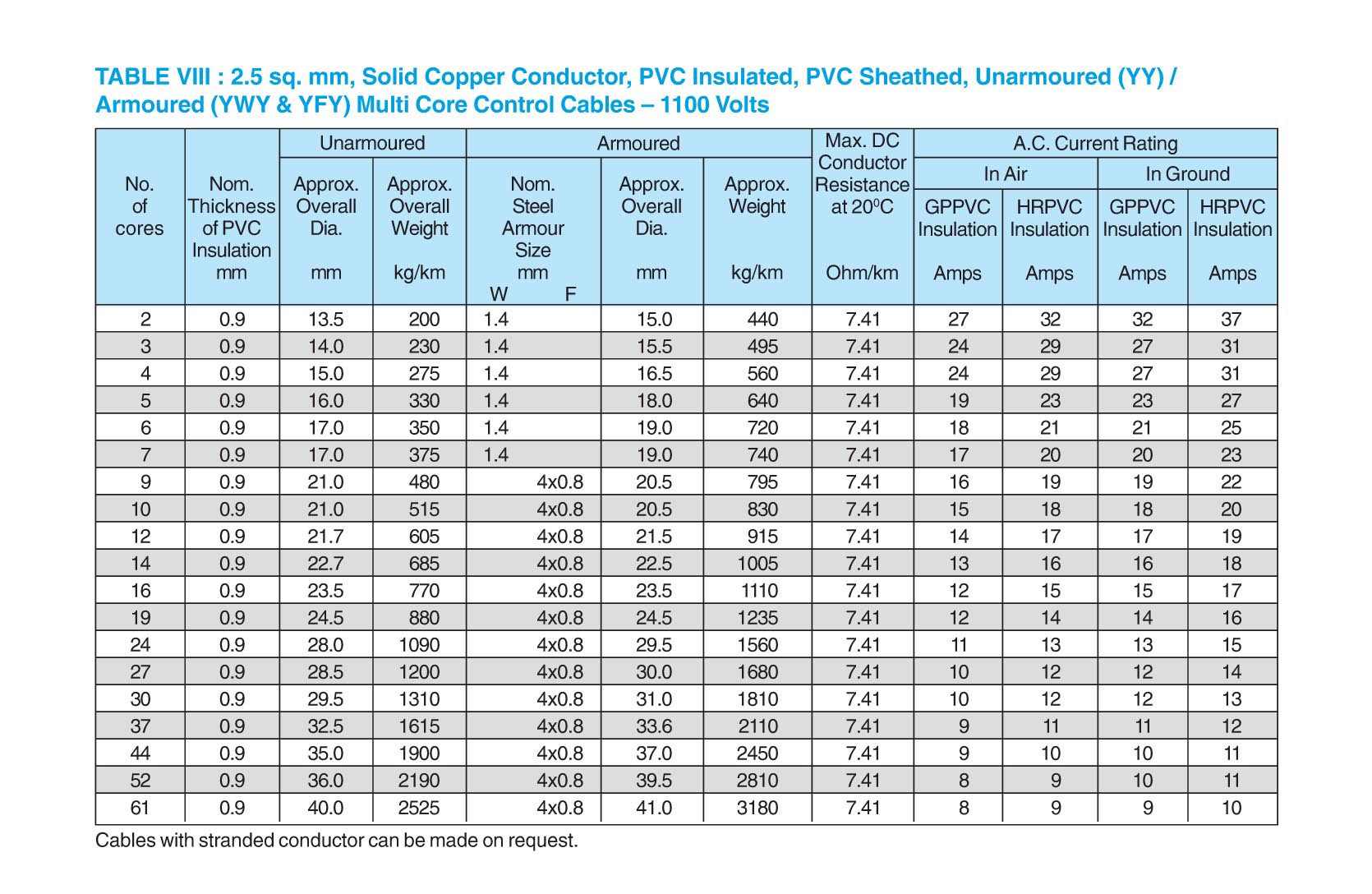

ARMOURED CABLE WEIGHT

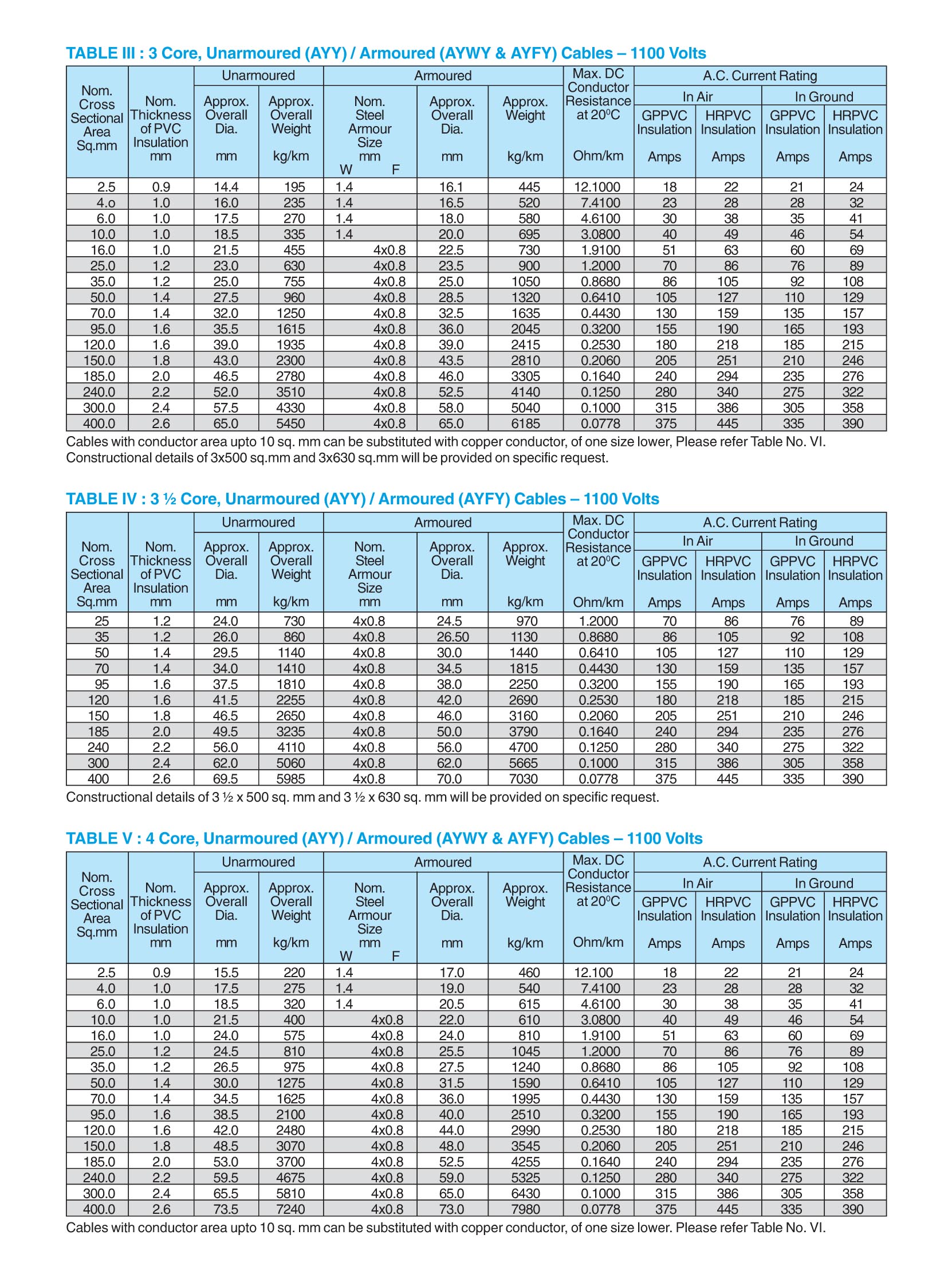

ARMOURED CABLE WEIGHT1

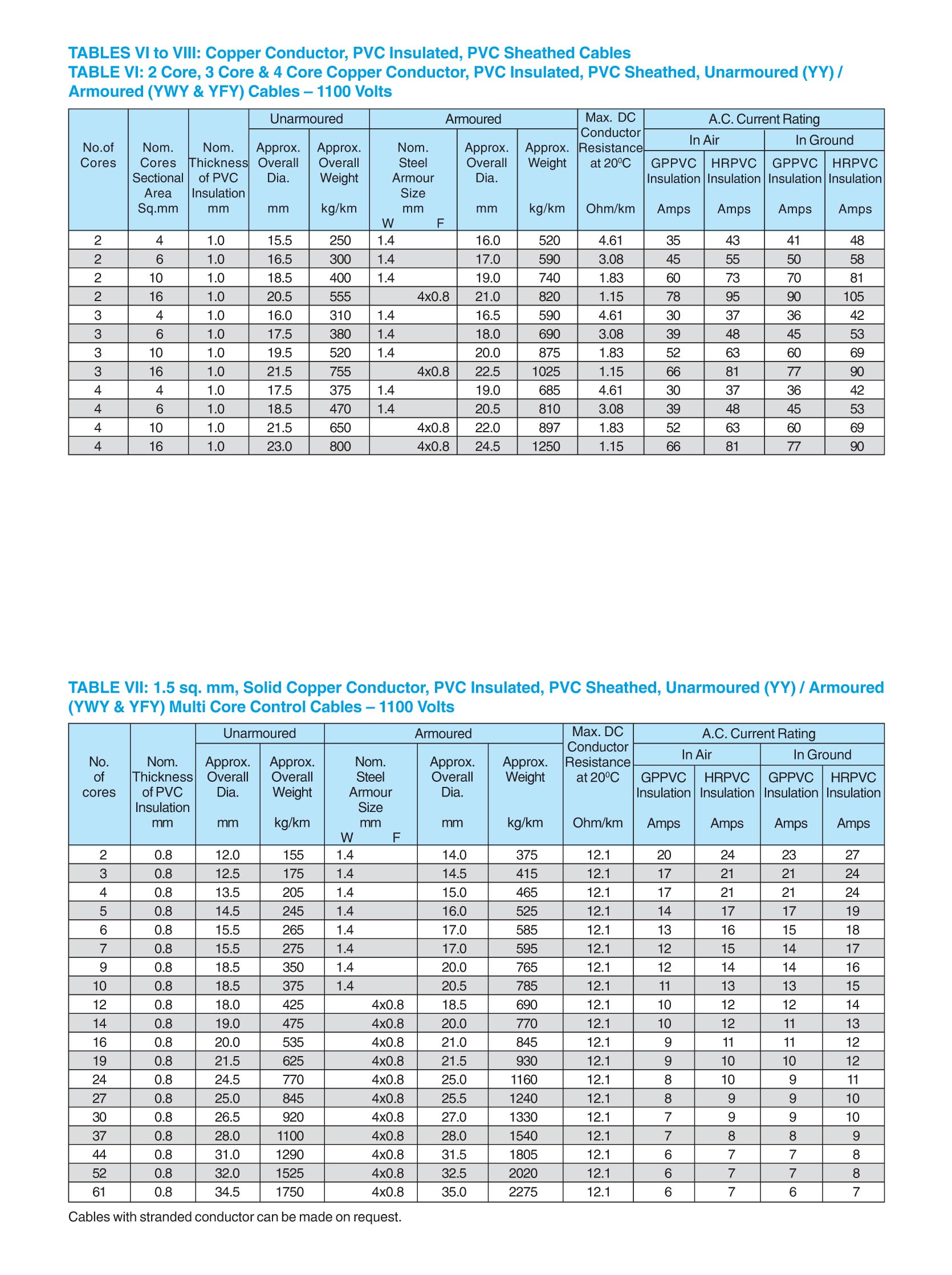

ARMOURED CABLE WEIGHT2

ARMOURED CABLE WEIGHT3



Armoured Cables Selecton Chart

1.1 KV 3 1/2&4 CORE, ALUMINIUM CONDUCTOR,

PVC INSULATED, INNER SHEATHED

Main Neutral Direct in Ground In Ducts In Air

Sq.mm

Sq.mm

 Amps Amps.

Amps.
1.5 - 16 14 13
2.5 - 21 18 18
4 - 28 23 23
6 - 35 30 30
10 - 46 39 40
16 - 60 50 51
25 16 76 63 70
35 16 92 77 86
50 25 110 95 105
70 35 135 115 130
95 50 165 140 155
120 70 185 155 180
150 70 210 175 205
185 95 235 200 240
240 120 275 235 280
300 150 305 260 315
400 185 335 290 375
500 240 350 310 410



1.1 KV 3 1/2&4 CORE, COPPER CONDUCTOR,

PVC INSULATED, INNER SHEATHED



Nominal Cross Current Ratings
Main Neutral Direct in Ground In Ducts In Air
1.5 - 21 17 17
2.5 - 27 24 24
4 - 36 30 30
6 - 45 38 38
10 - 60 50 52
16 - 77 64 66
25 16 99 81 90
35 16 120 99 110
50 25 145 125 135
70 35 175 150 165
95 50 210 175 200
120 70 240 195 230
150 70 270 225 265
185 95 300 255 305
240 120 345 295 355
300 150 385 335 400
400 185 425 360 455



CABLE GLANDS SELECTION CHART FOR ARMOURED CABLES

single compression / Double Compression



Cable size in Sqr mm 1-core

2-core

 3-core 3.5-core

4 - core

1.5 10mm(3/8") 10mm(3/8") 12mm(1/2") - 16mm(5/8")
2.5 10mm(3/8") 12mm(1/2") 16mm(5/8") - 19mm(3/4")
4 - 16mm(5/8") 19mm(3/4") - 19mm(3/4")
6   19mm(3/4") 19mm(3/4") - 22mm(7/8")
10 - 22mm(7/8") 22mm(7/8") - 25mm(1")
16 - 22mm(7/8") 22mm(7/8") - 28mm(1 1/8")
25 - 22mm(7/8") 25mm(1") 28mm(1 1/8") 28mm(1 1/8")
35 - 25mm(1") 28mm(1 1/8") 28mm(1 1/4") 28mm(1 1/4")
50 - 28mm(1 1/8") 28mm(1 1/8") 32mm(1 1/4") 32mm(1 1/4")
70 - 28mm(1 1/8") 32mm(1 1/4") 35mm(1 3/8") 35mm(1 3/8")
95 - 32mm(1 1/4") 35mm(1 1/8") 38mm(1 1/2") 38mm(1 1/2")
120 - 32mm(1 1/2") 38mm(1 1/2") 45mm(1 3/4") 45mm(1 3/4")
150 - 38mm(1 1/2") 45mm(1 3/4") 45mm(1 3/4") 50mm(2")
185 - 38mm(1 1/2") 50mm(2") 50mm(2") 50mm(2")
240 - 45mm(1 3/4") 57mm(2 1/4") 57mm(2 1/4") 57mm(2 1/4")
300 - 50mm(2") 57mm(2 1/4") 63mm(2 1/2") 63mm(2 1/2")
400 - 57mm( 2 1/4") 63mm(2 3/4") 70mm(2 3/4") 70mm(2 3/4")
500 - 63mm(2 1/2") 70mm(2 3/4") 82mm(3 1/4") -



FLANG TYPE GLANDS

Cable size in Sqr mm 1-core

2-core

 3-core 3.5-core

4 - core

1.5 - Size-5 Size-5 - Size-5
2.5 - Size-5 Size-5 - Size-5
4 - Size-5 Size-5 - Size-4
6   Size-4 Size-4 - Size-4
10 - Size-4 Size-3 - Size-3
16 - Size-4 Size-3 - Size-3
25 - Size-4 Size-3 Size-2 Size-2
35 - Size-3 Size-2 Size-1 Size-1
50 - Size-2 Size-1 Size-1 Size-1
70 - Size-1 Size-11 Size-11 Size-11
95 - Size-1 Size-0 Size-00 Size-00
120 - Size-11 Size-00 Size-38 Size-38
150 - Size-0 Size-38 Size-001 Size-001
185 - Size-00 Size-001 Size-002 Size-002
240 - Size-00 Size-002 Size-003 Size-003
300 - Size-001 Size-003 Size-003 Size-003
400 - Size-002 Size-003 Size-003 Size-003
500 - Size-003 Size-004 Size-004 -



COPPER AND GI WEIGHTS

Weight of Copper Strip / Flat in kg/Mtr.



Width mm

Thick mm

Weight Kg.Gms Width mm   Thick mm

Weight mm

12 x 3 0.38 50 x 6   3.044
12 x 6 0.761 50 x 10   4.527
19 x 3 0.57 63 x 6   3.805
19 x 6 1.141 63 x 10   5.708
25 x 3 0.761 75 x 6   4.567
25 x 6 1.522 75 x 10   6.85
25 x 10 2.263 100 x 6   6.089
32 x 3 0.952 100 x 10   9.055
32 x 6 1.903 125 x 6   7.609
32 x 10 2.854 125 x 10   11.1
38 x 3 1.141 150 x 6   9.131
38 x 6 2.283 150 x 10   13.3
38 x 10 3.425 -
38 x 10 3.425
50 x 3 1.522



Weight of Copper Wire Kg/Mtr Weight of G.I Strip / Flat kg/Mtr
S.W.G MM   Weight Kg. Widht mm Thick mm   Weight Kg. Gms.
3 6.4   0.2870 25 x 3   0.6
6 4.876 0.1660 25 x 6   1.2
8 4.064 0.1160 32 x 6   1.5
10 3.231 0.0750 40 x 6   1.88
12 2.64 0.0490 50 x 6   2.5
14 2.032 0.0270 50 x 10   4
16 1.625 0.0180 75 x 10   6
18 1.214 0.0100
20 0.911 0.0050
